Zyfra
Underground
Dispatch and optimization
for underground mines
for underground mines
Key benefits
Increase of productivity
Reduction of expenses
Reduce adverse human impact
Increase of safety
Improve decision making

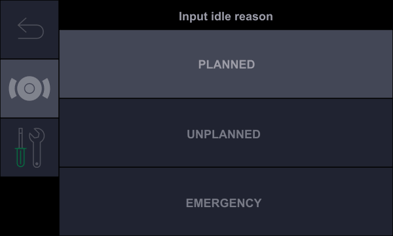

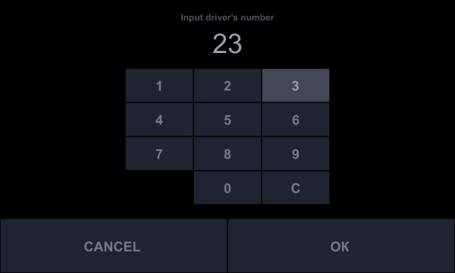

Onboard equipment
A complete set of onboard equipment and sensors to improve safety of your underground mine and reduce the human factor’s impact. Ready for integration with any installed geological & mining informational systems.
Features and functionality
Integration with any installed geological & mining informational system (ERP, EAM)
Collecting data regarding:
- Shift plan and plan corrections
- Ore flow guidelines
- Map of the mine
- Geological information
Provide:
- Production statistics
- KPI of the mine, equipment and employees

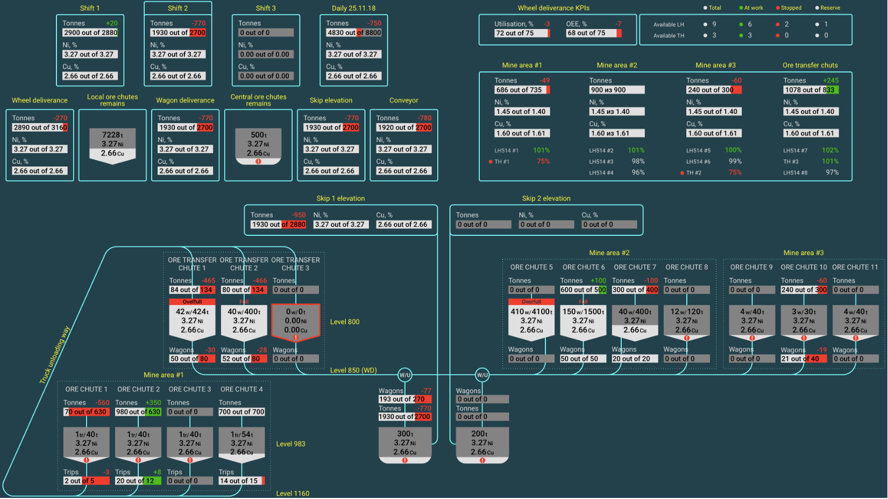

Real-time production statistics and reporting

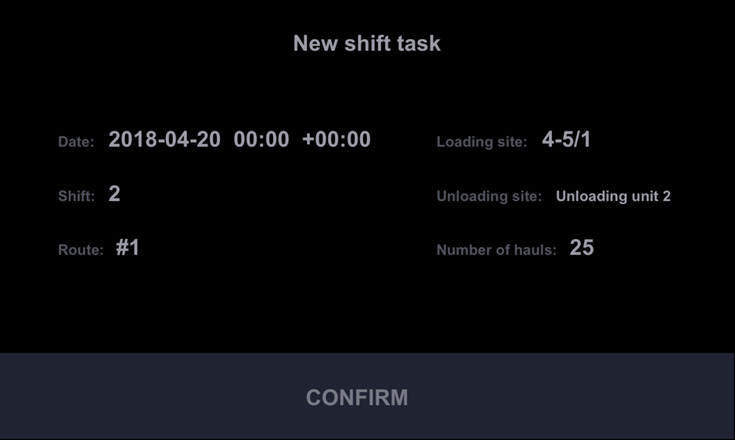

- Transfer of task assignment to the on-board computer (tonnage, number of rock mass buckets, loading and unloading locations) and assignment execution control.

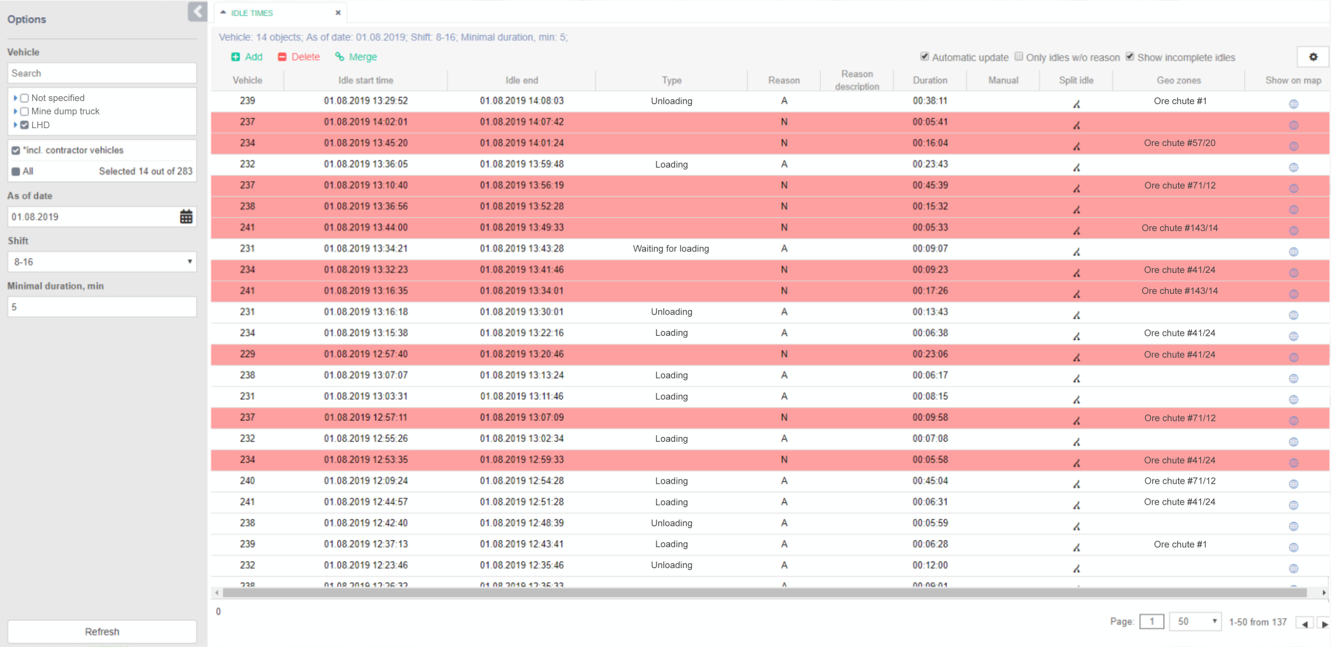

- Automatic calculation of mining equipment cycles and idles.
- Control and management of mining processes and transportation based on automatically collected KPIs (plan&fact ratio, idles, productivity, etc.).
- Equipment operation analysis for different reporting periods.
- Cumulative statistics on the quantity and quality of transported rock mass, with the possibility of aggregation by operator, unit of equipment, production and/or ore discharge.

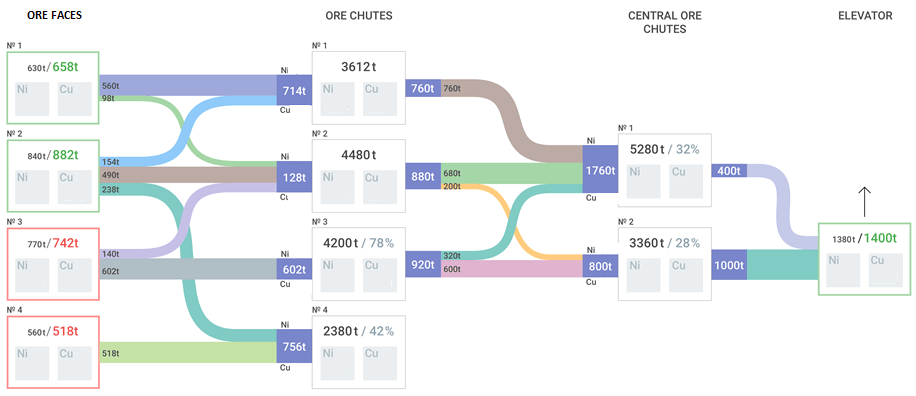

Ore flow control
- Visualization of ore movement (volume and quality) from active face to mill.
- Accounting of ore reserves in active faces and chutes.
- Includes transportation operations by LHD, underground trucks, skip hoists and conveyors.
- Can include weight, volume and quality measure systems.

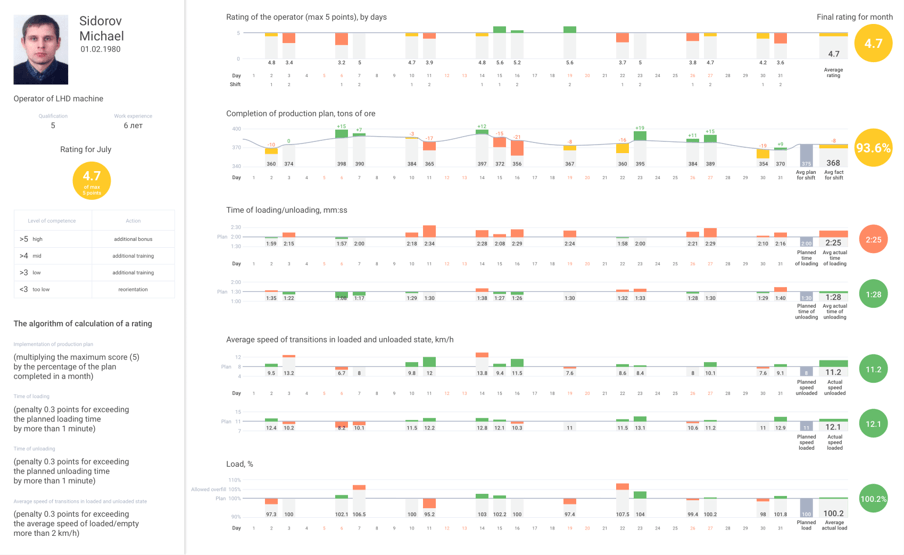

Analysis of operator performance
- Operator performance analysis based on different criteria set together with Customers.
- Providing each operator’s performance results to the Customer’s HR department for further training programs.
Dynamic optimization
- Allows for the distribution of LHD and underground trucks along routes in an open cycle, in accordance with the multi-criteria optimization approach.
- Optimization of changes, lunches and refueling.
Tire management
- Monitoring technical characteristics (pressure and temperature) of installed tires.
- Accounting of mileage and technical condition of tires.
- Accounting of installation, reinstallation, removal and disposal of tires.
- Operation control of units and assemblies; the use of tires.
Learn more about Zyfra Underground –
download the brochure
download the brochure
